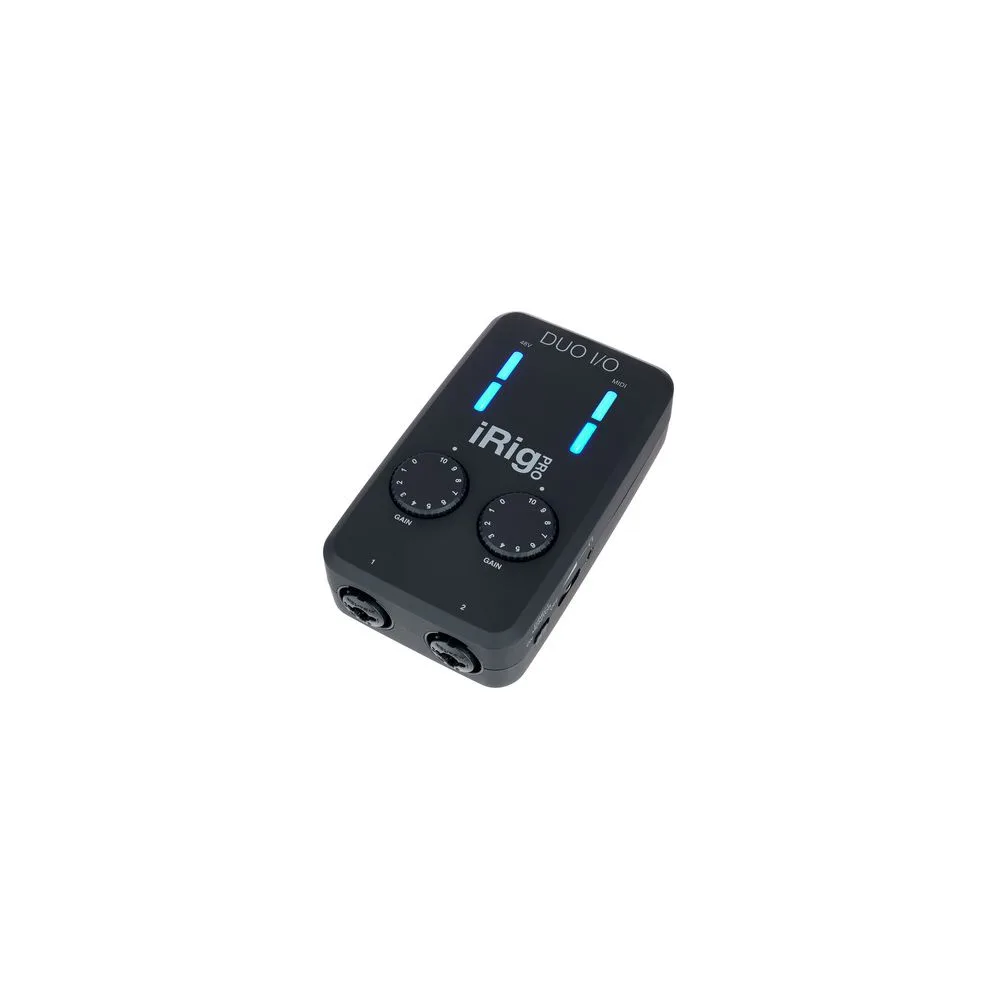

iRig Pro Duo I/O

Audio Interface for iPhone, iPad, Android, Mac and PC

• Very compact design for portable use
• 2 Combined mic / instrument inputs via combination jacks
• 2 High-quality microphone preamplifiers with individually adjustable gain and phantom power
• 2 Balanced line outputs
• Headphone output with volume control on 3.5 mm stereo mini jack
• Switchable direct monitoring
• AD/DA conversion: 24bit / 48kHz
• MIDI in/out
• Power supply via USB
• 9 Volt power supply (not included) or batteries (2x AA)
• Microphone inputs: 2 x XLR balanced
• +48V +/-4V phantom power
• 50 dB gain
• Impedance: 3.2 ohms
• Frequency range: 20 - 20000 Hz
• Noise level -103 dB (A)
• Instrument inputs: 2x 6.3 mm jack unbalanced
• Gain: 27 dB
• Impdeance: 1 ohms
• Frequency range: 5 - 21000 Hz
• Noise level -104 dB (A)
• Line outputs: 2x 6.3 mm jack balanced, max. Output level: 16 dBu / 600 ohms
• Frequency range: 10 - 21000 Hz
• Dynamic range: 106 dB-A
• MIDI input and output: 2 x 2.5 mm mono jack
• Power supply connection 9 V DC 500 mA
• Device connection mini-DIN
• Dimensions: 127 x 75 x 37 mm
• Weight: 197g (incl. batteries)
• System requirements: iOS 7.0, iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPad Pro 10.5-inch, iPad Pro 12.9-inch (2nd generation), iPad Pro 9.7-inch, iPad Pro 12.9-inch (1st generation), iPad Air 2, iPad Air, iPad mini 4, iPad mini 3, iPad mini 2, iPad (6th generation), iPad (5th generation), iPod touch (6th generation), from Android 5 on devices with USB digital audio functions, from Win7, from Mac OS X 10.6

Delivery contents:

• iRig Pro Duo
• Lightning on mini DIN cable 0.6 m
• USB-C on mini-DIN cable 0.6 m
• USB to mini-DIN cable 0.6 m
• 2 x 2.5mm jack on MIDI cable 0.1 m
• 2 x 1.5 V AA batteries
• AmpliTube 4 and AmpliTube 5 SE
