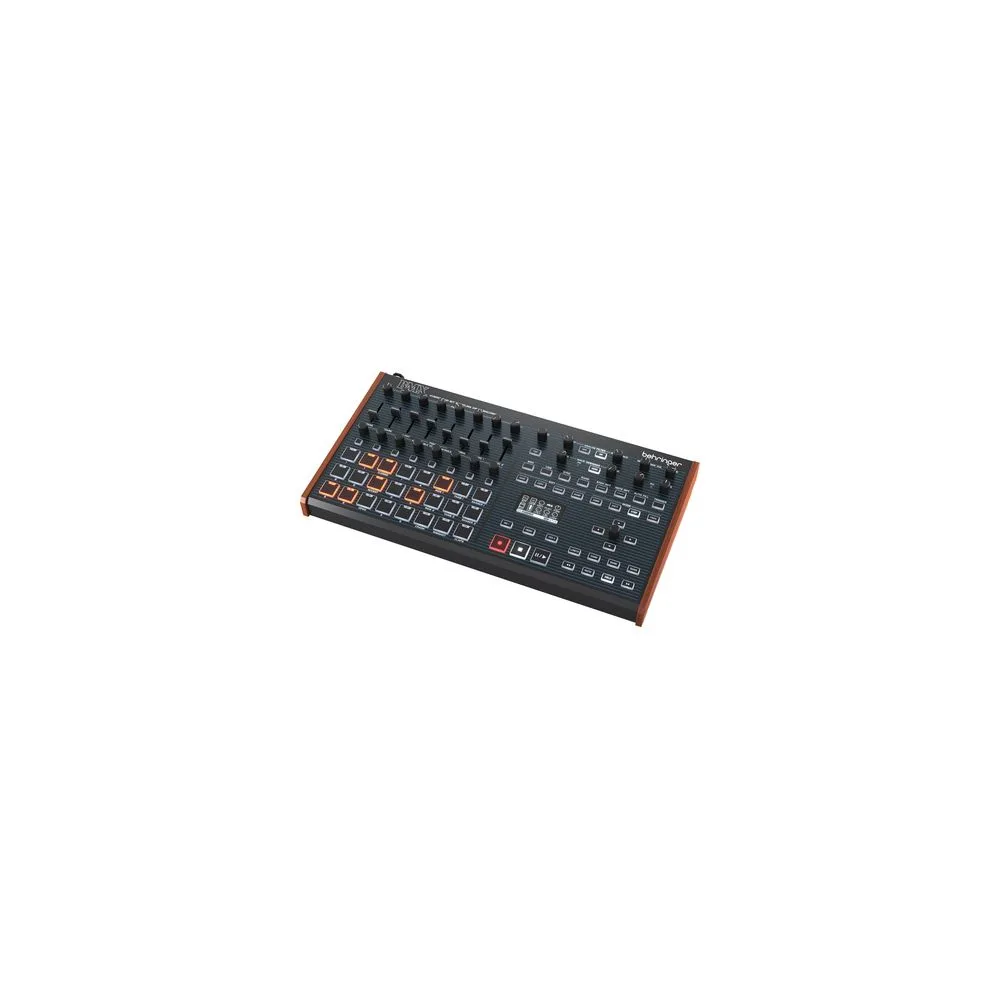

BMX

Hybrid Sampling Drum Machine

• Eight voices – each with 8-bit/12-bit D/A converters featuring variable sampling rates and low-pass filters
• Volume fader per channel, pan control, editing encoder, select button
• 24 velocity-sensitive pads
• Wave designer with adjustment options for attack and sustain
• Assignable analogue filter (low-pass/high-pass) with controls for cut-off and resonance
• 121 drum samples
• 64-step sequencer with poly-meter, step repeat, note repeat and real-time triggering
• Up to eight songs and 192 patterns can be stored
• Auto scroll function
• LC display
• Interior dimensions (W x D x H): 479 x 264 x 73 mm
• Weight: 3.12 kg
• Including external power supply (12V DC)

Connectors:

• Line input for recording the user’s own samples: 6.3 mm jack
• Stereo line-out outputs: 2 x 6.3 mm jack
• Stereo headphone output: 6.3 mm jack
• Eight individual outputs for instruments: 6.3 mm jack
• Three assignable trigger outputs: 3.5 mm jack
• Sync input/output: 3.5 mm jack
• MIDI In/Out: 5-pin DIN
• USB-B port
