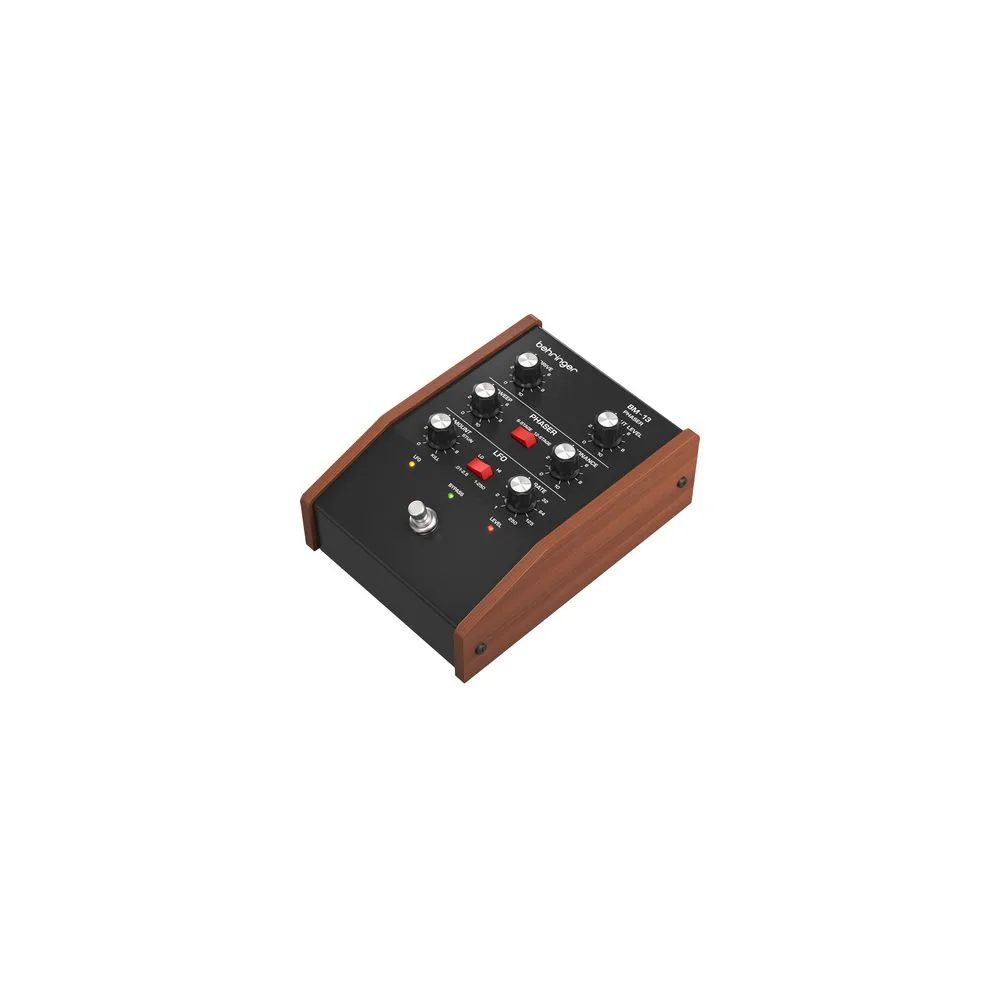

BM-13 Phaser

Effect Pedal for Electric Guitar, Electric Bass, and Synthesizer

• Vintage phaser
• Features modular-style input and output options
• Authentic replica of the Moog MF-103 from the 1990s
• 12-stage phaser with feedback control for resonant effects
• Powerful modulation options for a wide range of sounds
• Envelope control for dynamic and expressive modulation
• Input level and mix controls
• Controls: Drive, Output Level, Sweep, Resonance, LFO Amount and Rate
• Switches: 6-Stage/12-Stage, LFO Speed Lo/Hi, LED: LFO, Bypass, Level
• Footswitch: Effect bypass
• Current consumption: 400 mA
• Power supply via 9 V DC mains adapter (2.1 x 5.5 mm barrel connector, centre negative) - suitable mains adapter: Art. 409939 (not included)

Connections:

• Audio in: 6.3 mm jack
• Sweep: 6.3 mm jack
• Reso: 6.3 mm jack
• Rate: 6.3 mm jack
• Amount: 6.3 mm jack
• Audio out: 6.3 mm jack
• Aux out: 6.3 mm jack
• Sweep in: 6.3 mm jack
• LFO out: 6.3 mm jack

Note: Battery operation not supported
