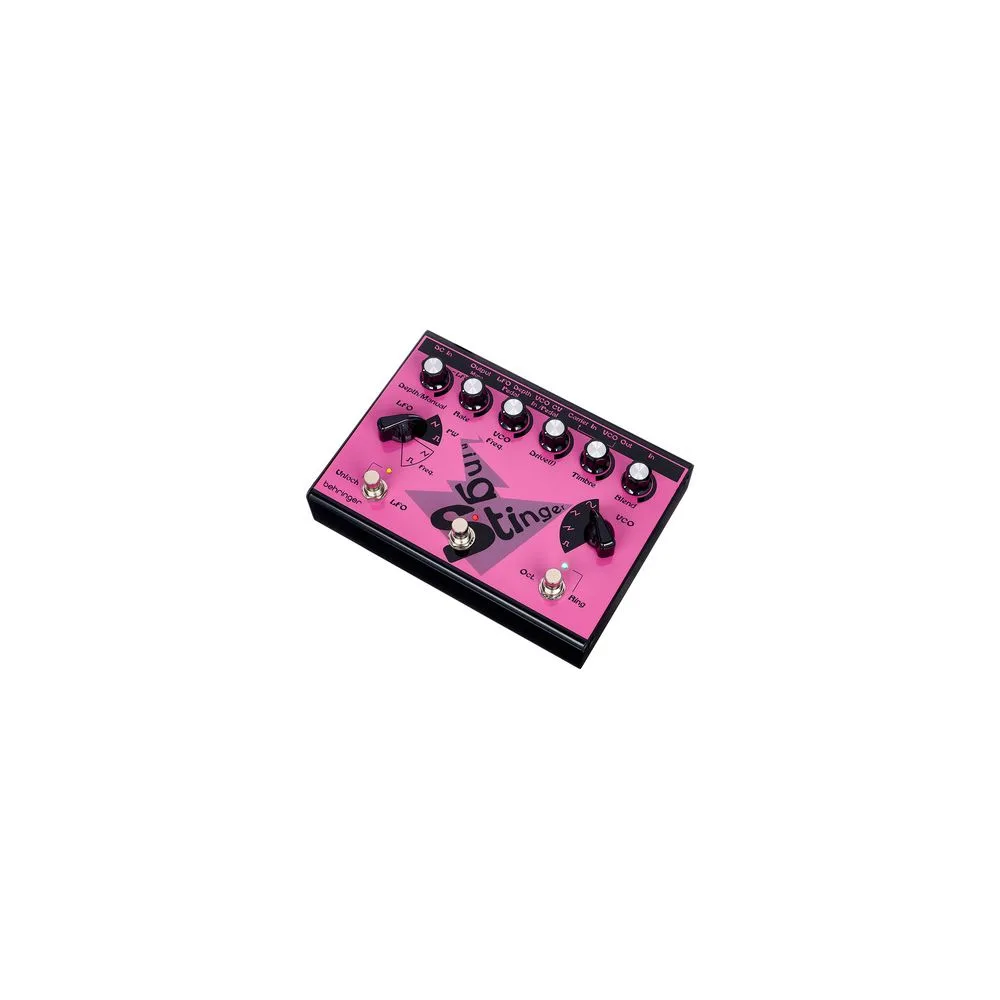

Ring Stinger

Effect Pedal for Electric Guitar & Bass

• Ring modulation and fuzz
• Control of various parameters via an expression pedal
• LFO (Low-Frequency Oscillator): Generates rhythmic modulation patterns
• Blend Control adjusts the ratio between the unmodulated and modulated signals
• A choice of different modulation waveforms
• Controls: Depth / Manual, Rate, VCO Freq, Drive(I), Timbre, Blend
• Switch: LFO, VCO
• LED: Effect on
• Footswitch: Effect bypass, LFO (unlock), Oct.Ring
• Input: 6.3 mm jack
• Output: 6.3 mm jack
• Power supply connection: Barrel connector 5.5 x 2.1 mm, centre negative
• Current consumption: 400 mA
• True bypass
• Power supply via 9 V DC power supply unit (not included, suitable power supply unit: Art. 409939)
• Dimensions: (W x D x H): 201 x 150 x 64 mm
• Weight: 1087 g

Note: Battery operation not supported.
