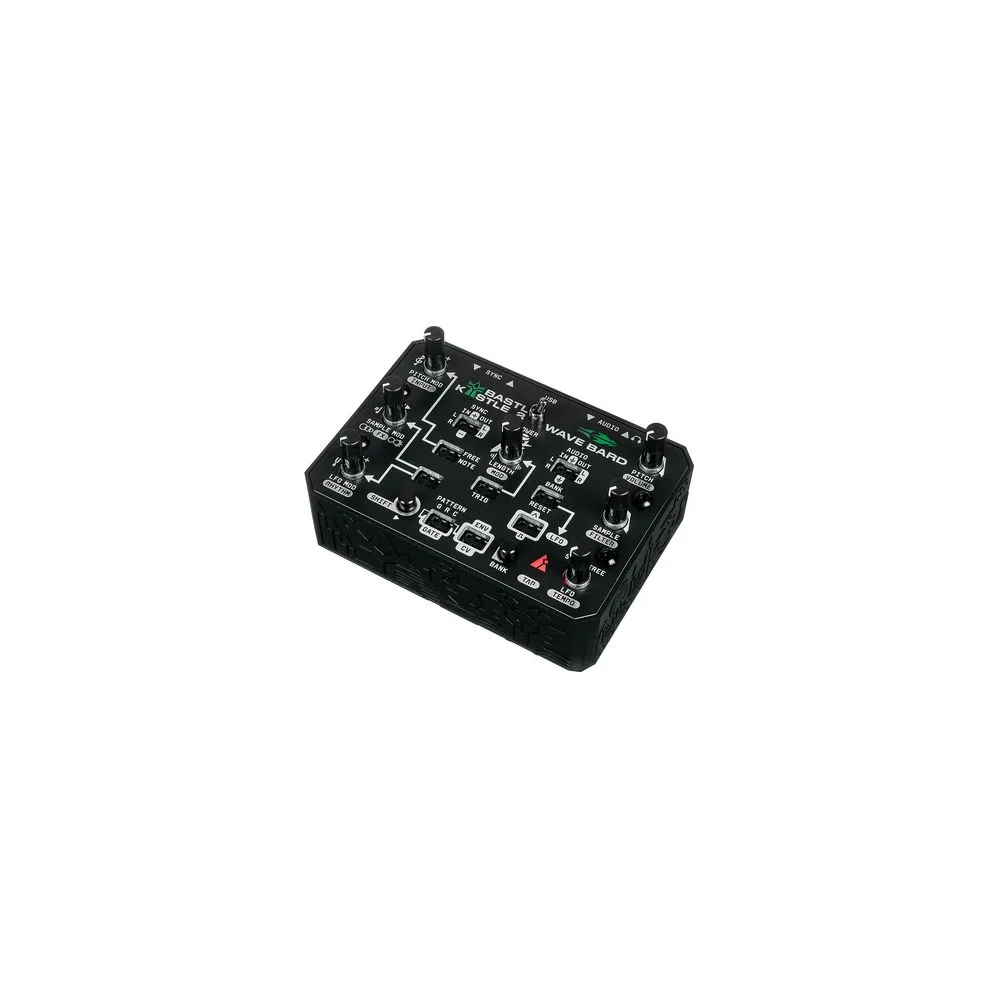

Kastle 2 Wave Bard

Compact Semi-Modular Sample Player

• Sampling time: 89 seconds (mono), 44 seconds (stereo)
• 16 bit / 44 kHz
• Memory locations for up to 32 banks with 32 samples each (editable via web app)
• Banks and samples can be selected via rotary controls, CV inputs and the internal pattern generator and LFO
• Pitch control (+/- 2 octaves) and adjustable quantiser
• Controls for sample modulation, sample selection, sample length & sample envelope, LFO modulation, tempo
• Low-pass/high-pass filter with resonance
• Stereo delay or chorus/flanger effect
• Pattern and gate generator
• CV inputs for all parameters
• Stereo line / headphone output: 3.5 mm jack
• Stereo line input: 3.5 mm jack
• Sync input and output: Two 3.5 mm mini jacks
• Power supply via batteries (three AA) or USB-C port (batteries and power supply not included)
• Dimensions (W x D x H): 95 x 70 x 45 mm
• Weight: 130 g
• Includes ten patch cables
