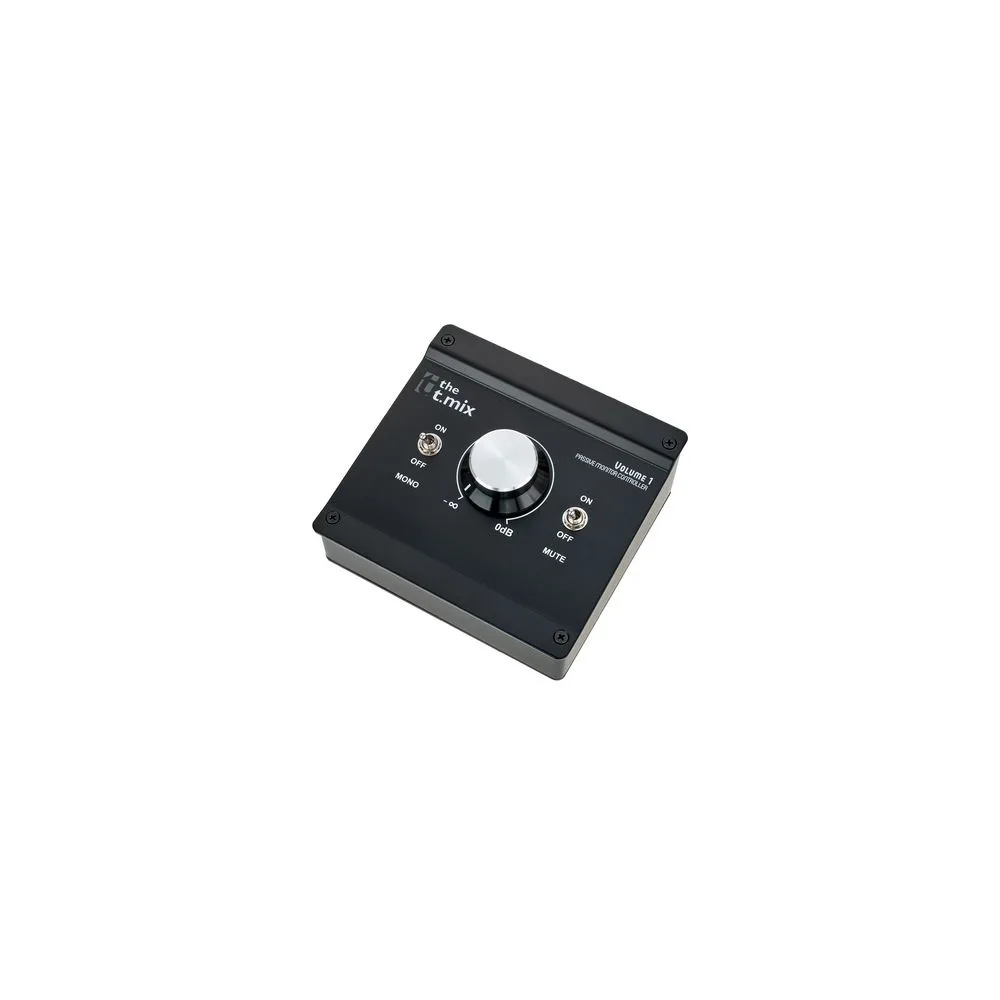

Volume 1

Passive volume controller for monitors

• Desktop format
• Enables precise volume control of analog signals
• Inputs: 2 x Jack / XLR combo, 1 x 3.5 mm stereo jack
• Outputs: 2 x 6.3 mm Balanced jack, 1 x 3.5 mm stereo jack
• Switchable mute
• Switchable mono summation
• Max. Input level: +26 dB
• Input impedance: 5000 ohms
• Max. Output level:> +26 dB
• Output impedance: 0 - 5000 ohms
• Frequency range: 20 - 20,000 Hz
• Signal to noise ratio: <-120 dB
• Crosstalk: <-80 dB
• Robust metal housing
• Dimensions: 118 x 112 x 46 mm
• Weight: 342 g
