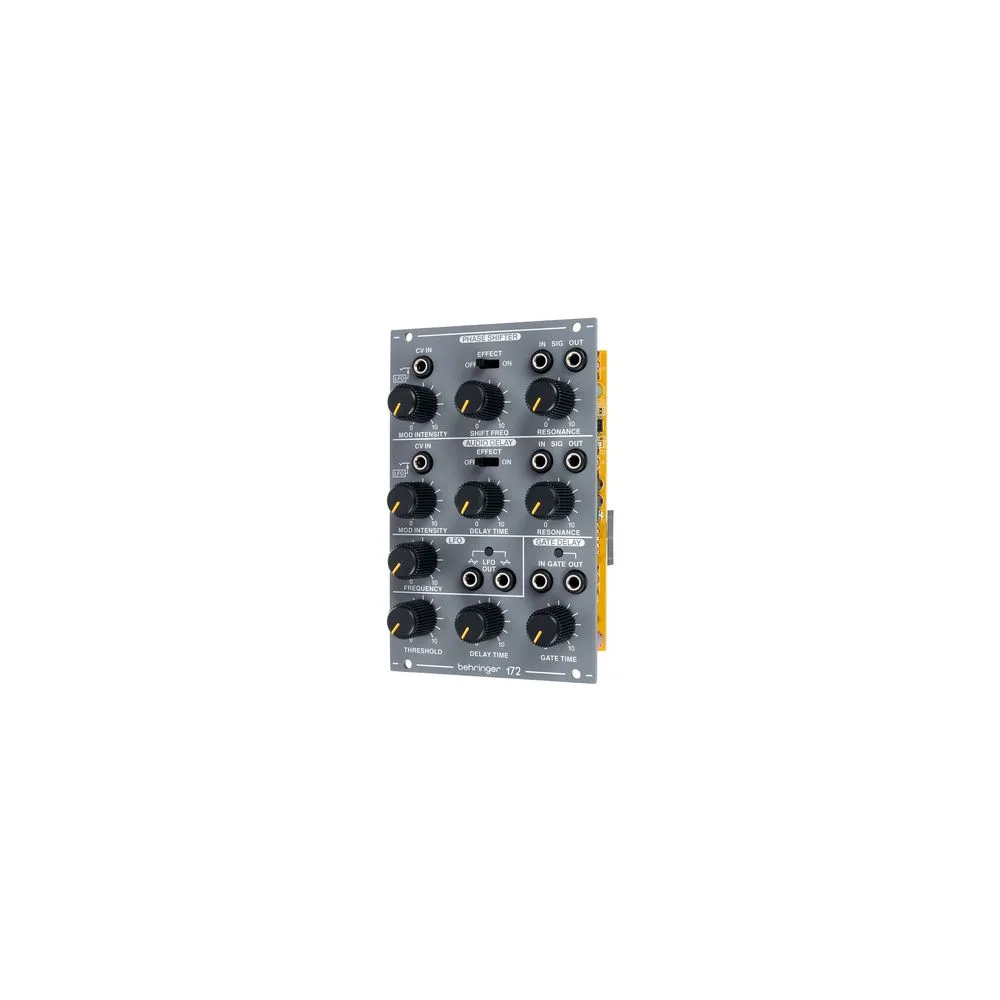

172 Phase Shifter/Delay/LFO

Eurorack Module

• Analogue 6-stage phaser with controls for shift frequency, resonance and modulation intensity (via internal LFO or CV input)
• Delay section for flanger and chorus effects, with adjustable delay time, resonance and modulation intensity (via internal LFO or CV input)
• LFO with outputs for triangle and inverted triangle - frequency range 0.02 - 10 Hz
• Gate delay with adjustable trigger threshold, delay time (0.3 ms - 6 s) and gate time (0.3 ms - 6 s)
• Current consumption: 60 mA (+12 V) / 60 mA (-12 V)
• Width: 16 HP
• Depth: 44 mm
