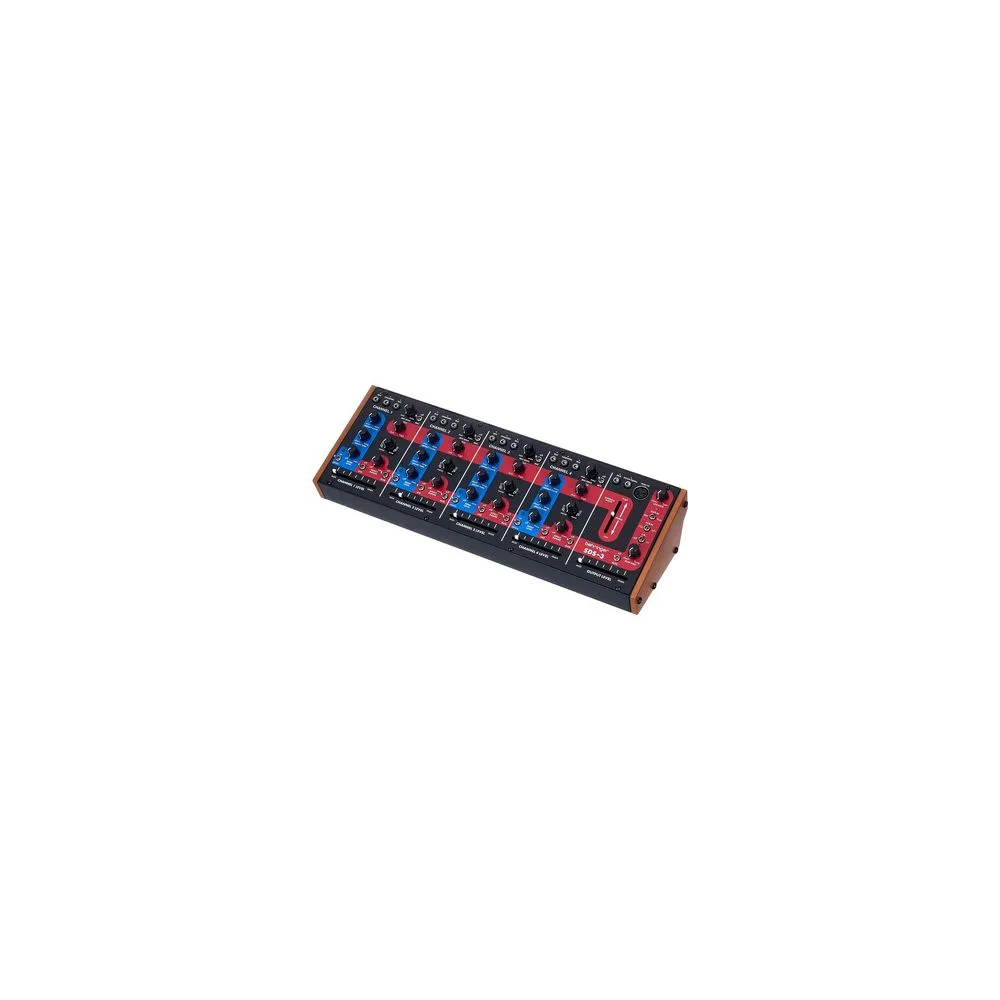

BDS-3

Analogue 4-Channel Drum Synthesizer

• Based on a classic drum synthesizer from the late 1970s
• Four identical channels for generating kick drums, toms, percussion, gongs, bells, cymbals and more
• Per channel controls for Pitch, Impact Click, Decay Time, Bend Level (positive or negative), Noise/Tone Balance, Effect Range (intensity of LFO and Sample & Hold) and channel volume
• Each channel can be played via MIDI, USB-MIDI or mic input.
• Sensitivity adjustable per channel for mic input
• Per channel audio and mic output
• Master section with pitch control, level control, LFO (with square and sine waveforms) and sample & hold
• Can be used as a complete Eurorack synthesizer voice (width: 70 HP)
• Mix output: 3.5 mm and 6.3 mm jack
• Pitch input: 3.5 mm and 6.3 mm jack for expression pedal
• Decay Kill footswitch Input: 6.3 mm jack
• MIDI input (5-pin DIN) and USB-B port for USB-MIDI
• Dimensions (W x D x H): 374 x 136 x 93 mm
• Weight: 1.51 kg
