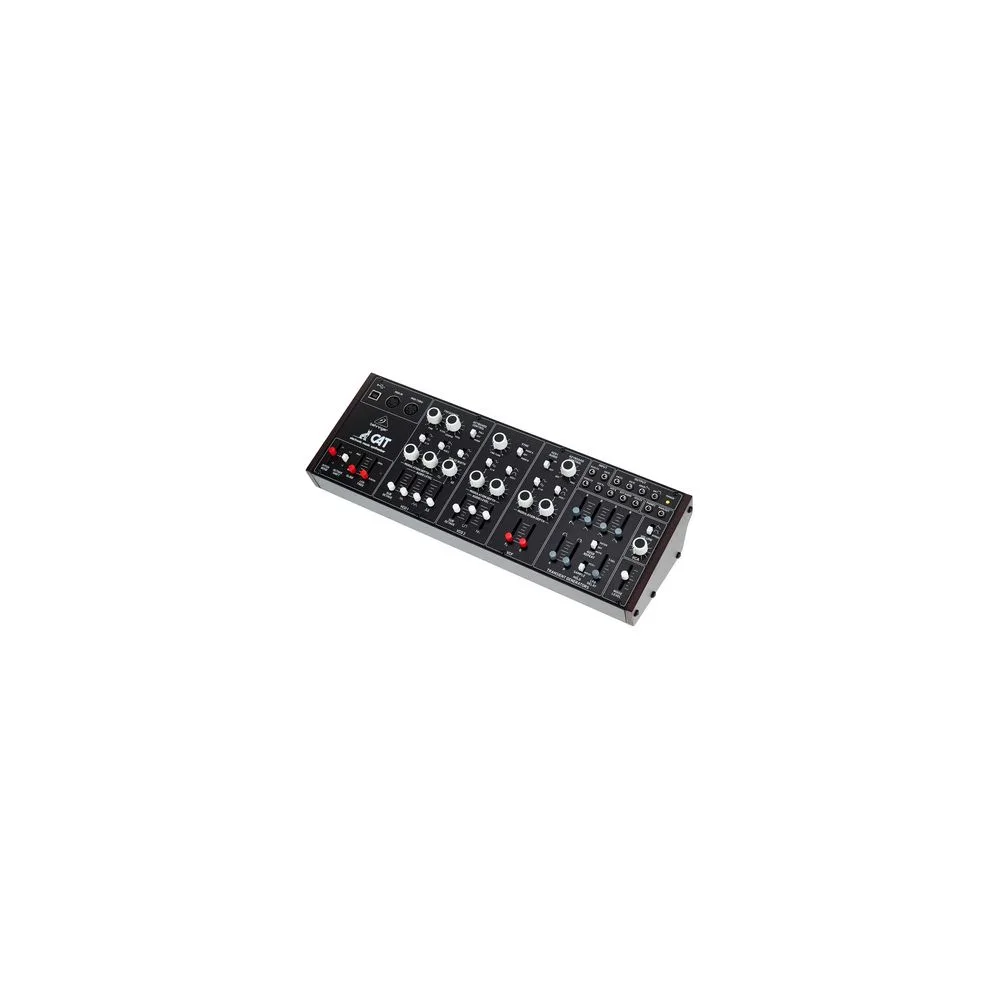

CAT

Analogue Synthesiser

• VCO 1 with 4 miscible waveforms (sawtooth, triangle, pulse and suboctave)
• Pulse width modulation and two adjustable modulation sources
• VCO 2 with 3 mixable waveforms (sawtooth triangle and suboctave) and two adjustable modulation sources
• Low pass filter with resonance, two adjustable modulation sources and adjustable key tracking
• Two analogue envelopes (ADSR and AR)
• Analogue LFO
• Noise generator and sample & hold unit
• Duophone playable
• 3.5 mm Audio input for sound processing from external sources
• Can be used as a full Eurorack synthesiser voice (width: 70 HP)
• Poly chain function for connecting up to 16 devices
• Main out via 3.5 mm jack and 2x 6.3 mm jack (high and low level)
• Headphone output: 3.5 mm jack
• MIDI In / Thru and USB-MIDI
• Dimensions: 87 x 374 x 136 mm
• Includes power supply (12 VDC, 1000 mA)
