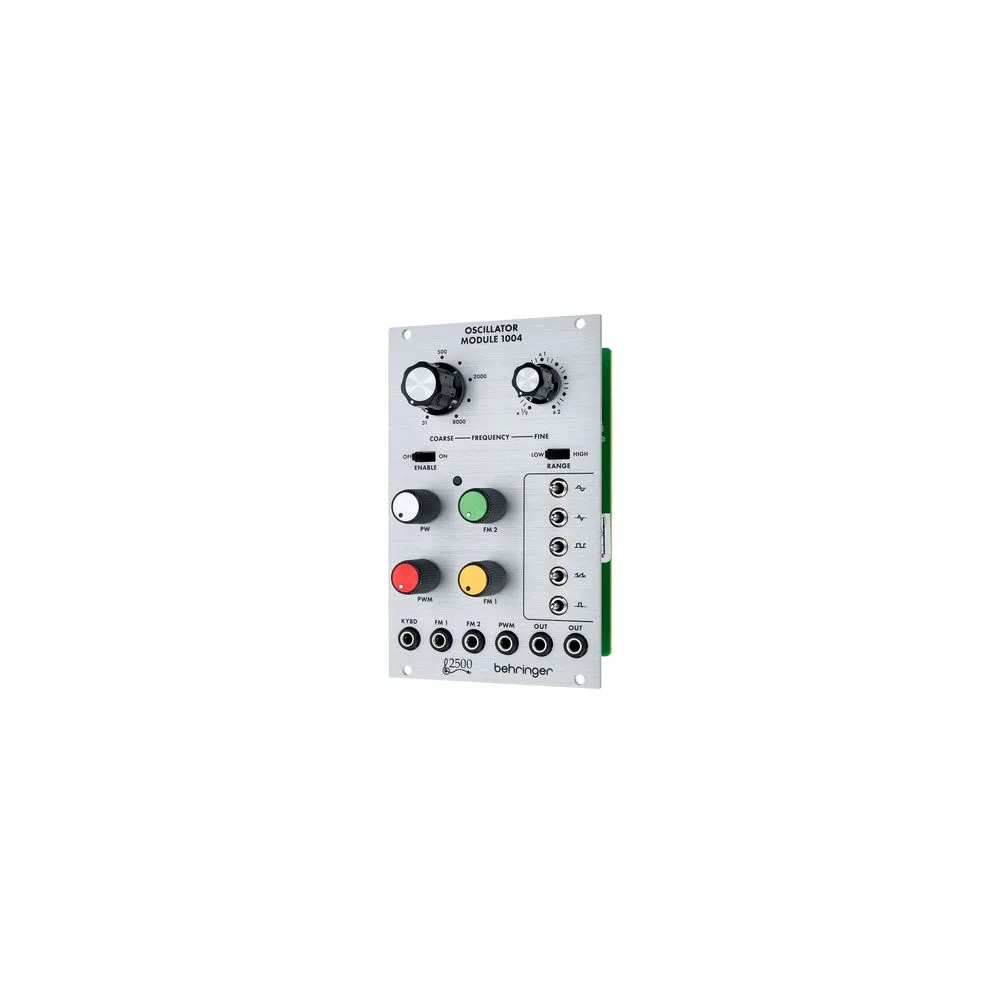

Oscillator Module 1004

Eurorack Module

• Analogue VCO with triangle and sawtooth core
• Controls for coarse and fine tuning
• Switchable LFO mode (frequency range: 0.06Hz - 16Hz)
• Adjustable pulse width
• CV input with attenuator for pulse width modulation: two CV inputs with attenuators for frequency modulation
• The 5 waveforms sine, triangle, square, sawtooth and pulse can each be muted, mixed or inverted via kip switches
• 1V/oct. input
• Two signal outputs
• Current consumption: 60mA (+12V) / 50mA (-12V)
• Width: 16 HP
• Depth: 46 mm
