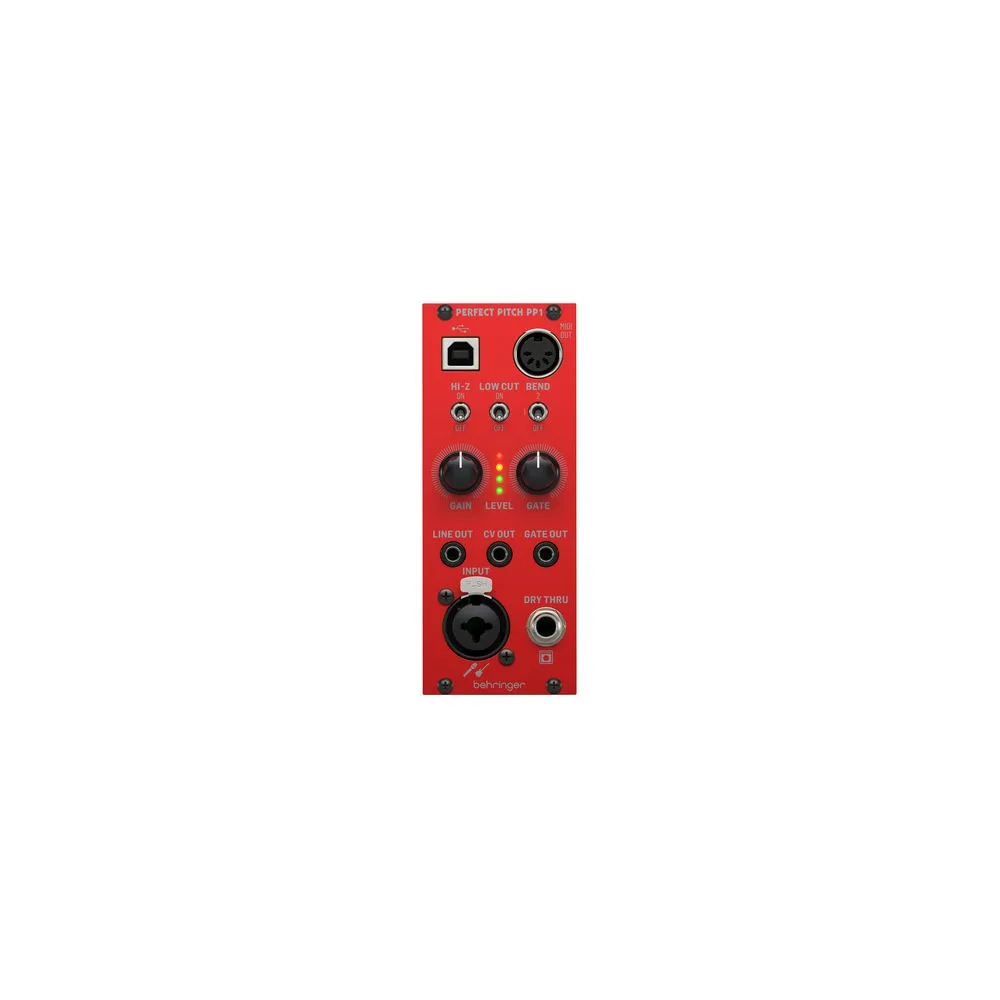

Perfect Pitch PP1

Eurorack Module

• Converter for instrument, line and microphone signals to MIDI, USB-MIDI and CV/Gate
• Extracts pitch CV and gate/trigger signal from mono input sources
• Input for instrument, line and microphone signals: XLR/TRS combo jack
• Thru output: 6.3 mm jack
• Switches for Hi-Z, Low Cut and Bend
• +50 dB gain control with level meter
• Gate Threshold Control
• Line, CV and Gate outputs: 3.5 mm jack
• USB-B port and MIDI Out: 5-pin DIN
• Current requirement: 58 mA (+12 V) / 30 mA (-12 V)
• Width: 8 HP
