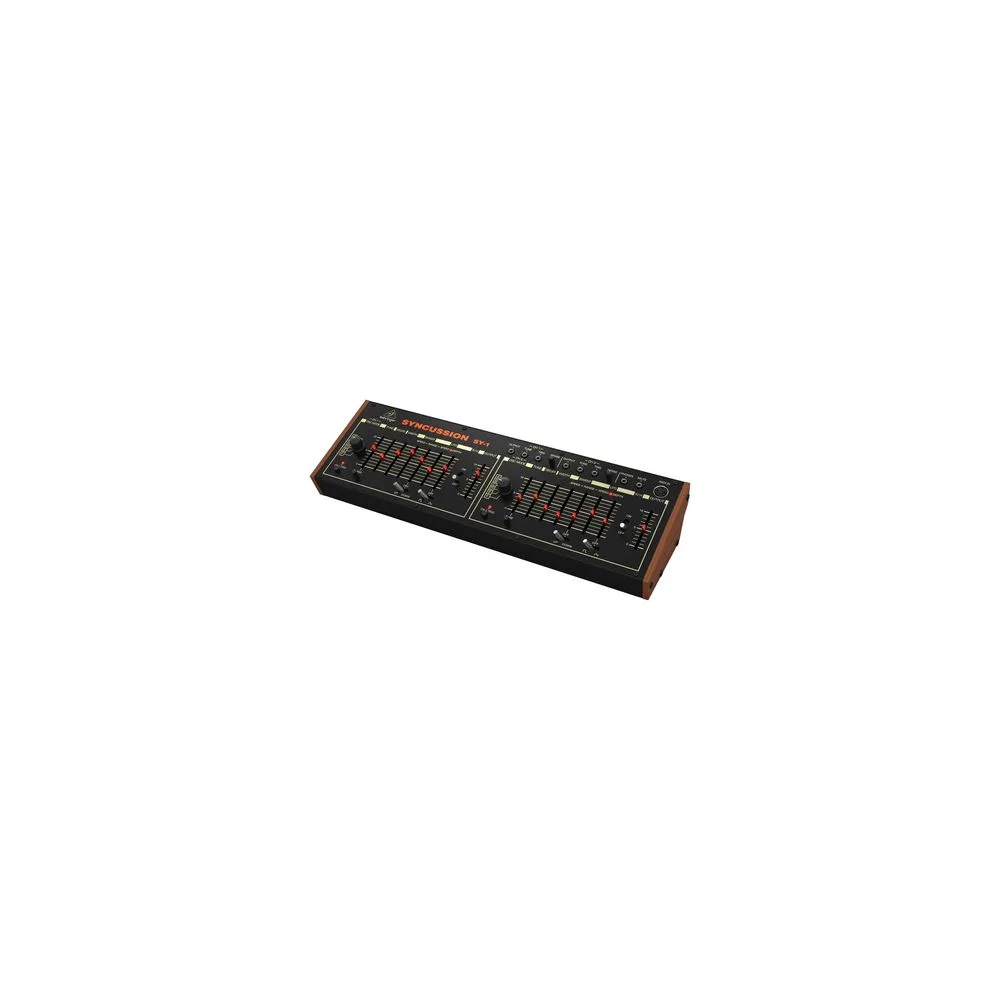

Syncussion SY-1

Analogue 2-Channel Percussion Synthesizer

• Based on a classic drum synthesizer from the late 1970s
• Two VCOs
• With six oscillator modes: Single oscillator, FM, dual oscillator mix, dynamic oscillator mix, FM/noise mix and pure noise
• Each with tune, decay and filter cutoff controls
• Pitch sweep function with speed, range and up/down controls
• Two LFOs with square and triangle waveforms
• Sample & Hold control for random pitch changes
• 30 control elements for real-time access to important parameters
• Volume control per channel
• Dip switch for setting the MIDI channel
• Eurorack format (standard Eurorack compatible)
• Dimensions (H x W x D): 95 x 424 x 136 mm
• Width: 80 HP
• Weight: 1.9 kg

Connections:

• 1x Audio output per channel: 6.3 mm jack
• 1x Audio output per channel: 3.5 mm jack
• 1x Stereo headphone output 32 Ohm: 3.5 mm jack
• 1x MIDI In: 5-Pin DIN
• 1x MIDI Thru: 5-Pin DIN
• 1x USB 2.0 Type-B
