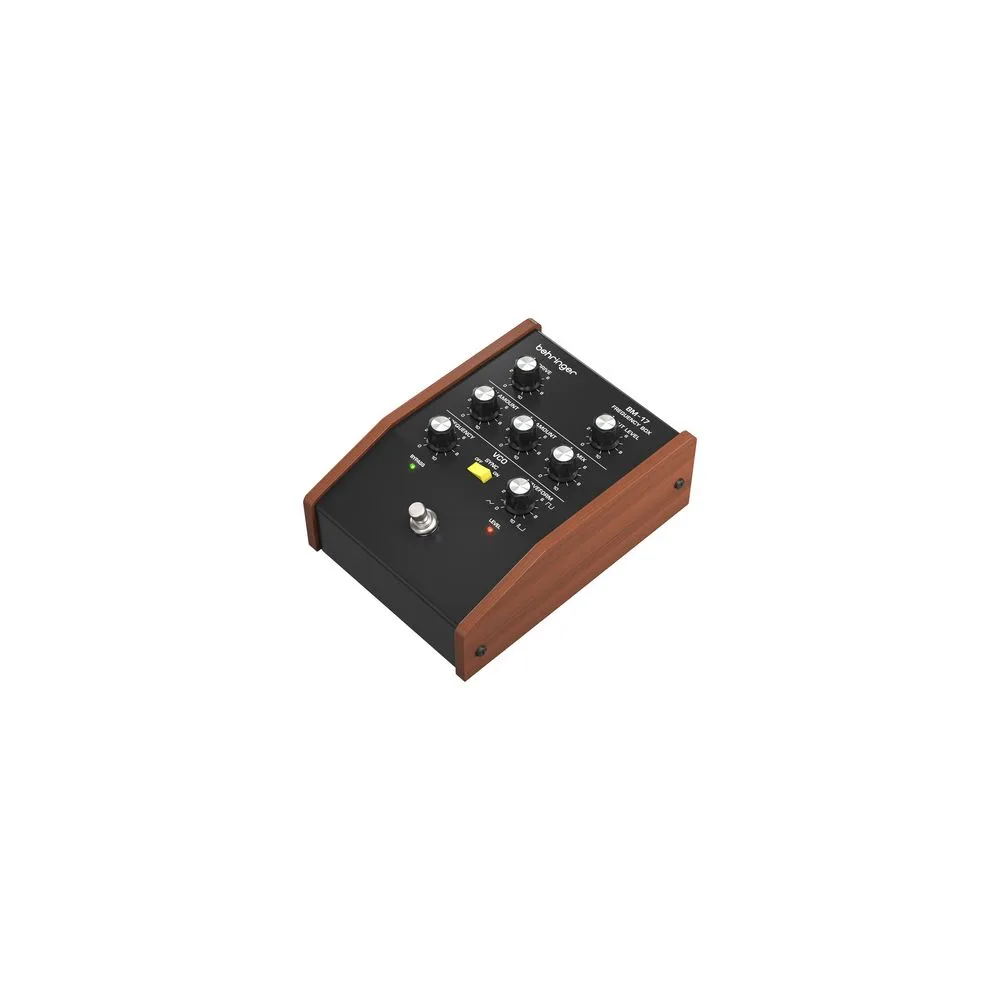

BM-17 Frequency Box

Effect Pedal for Electric Guitar, Electric Bass, and Synthesizer

• Versatile and expressive effects generator with a voltage controlled oscillator
• Authentic replica of a legendary pedal from the 1990s
• Wide range of effects, from fuzz distortion to modular synthesiser sounds
• Envelope control for dynamic and expressive frequency modulation
• Controls: Drive, Output Level, Env Component, FM Component, Mix, Frequency, Waveform
• Switch: VCO Sync
• LED: Effect on, Level
• Footswitch: Effect bypass
• Power via 9 V DC power supply unit (not included - suitable power supply: Art. 409939)

Connectors:

• Audio in: 6.3 mm jack
• Freq: 6.3 mm jack
• Wave: 6.3 mm jack
• Env amt: 6.3 mm jack
• FM amt: 6.3 mm jack
• Audio out: 6.3 mm jack
• Env out: 6.3 mm jack
• Osc out: 6.3 mm jack
• Mix: 6.3 mm jack
• Power supply connection: Barrel connector 5.5 x 2.1 mm, centre negative

Note: Battery operation is not supported.
