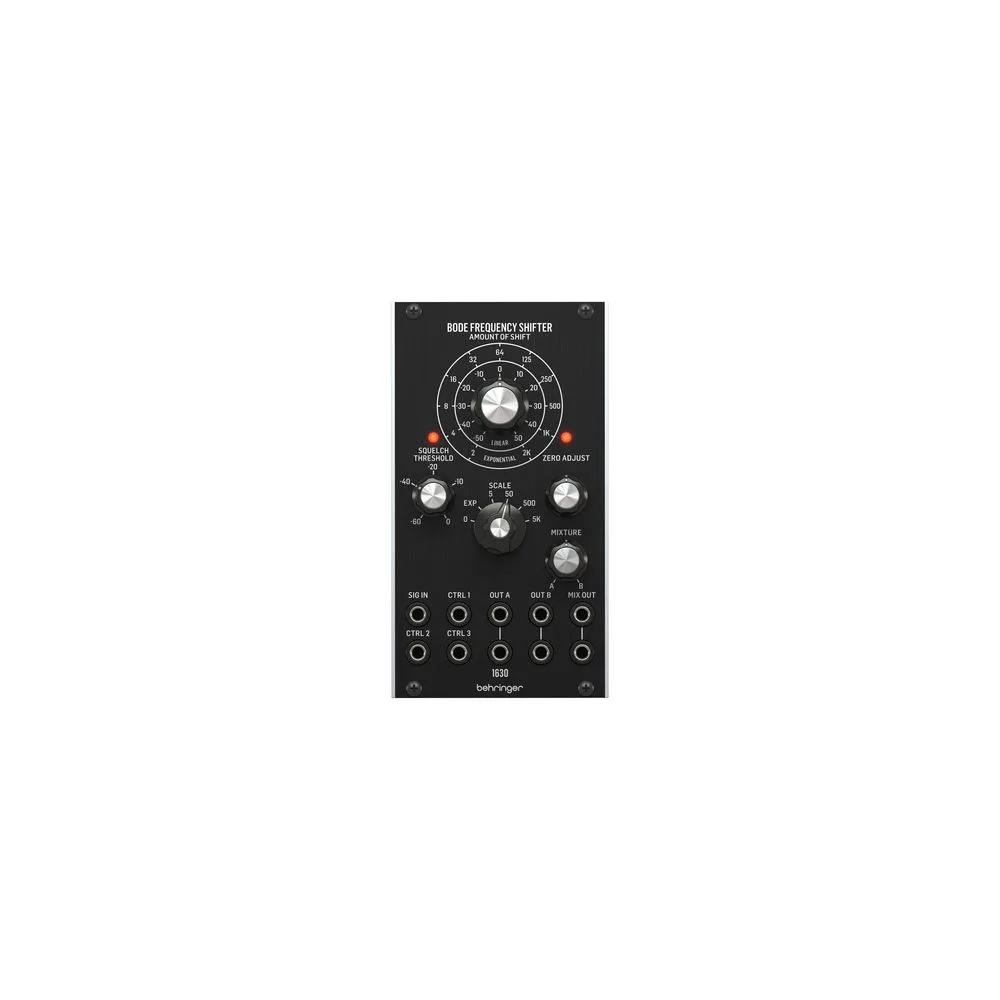

Bode Freq Shifter 1630

Eurorack Module

• Analogue frequency shifter for audio signals
• Coarse and fine control for frequency shifting
• Amount Of Shift continuously adjustable from -5 kHz to +5 kHz
• Shifts input signals over the frequency range of 30 Hz - 16 kHz
• Linear and exponential scale mode
• Shift range in exponential mode: 2 Hz to 2 kHz
• 4 Different lienear modes: 5 / 50 / 500 / 5k
• Shift range in linear mode: max. ± 5 kHz
• CV inputs for amount of shift
• Adjustable squelch threshold
• Output A carries the spectrum shifted upwards
• Output B carries the spectrum shifted downwards
• MIX output with adjustable mixing ratio
• Power consumption: 110 mA (+12 V) / 110 mA (-12 V)
• Width: 14 U
