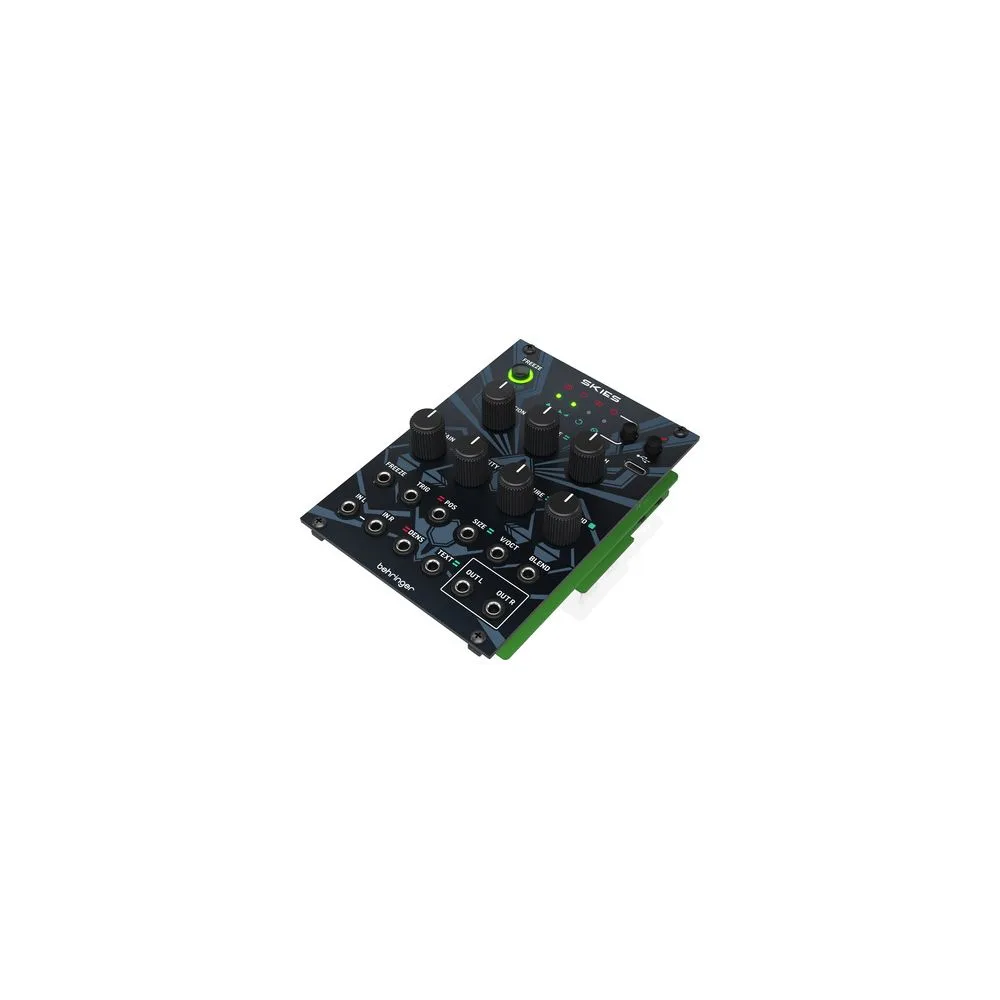

Skies

Eurorack Module

• Stereo Granular Processor
• Selectable modes: granular synthesis, pitch shifting and time stretching, looping delay and spectral processing
• Processing in 8-bit/16 kHz or 16-bit/32 kHz
• Controls for Position, Grain Size, Pitch, Density, Texture, Blend
• CV inputs for all parameters (range: -8 V to +8 V)
• Freeze Trigger input
• Stereo audio input with gain control
• Stereo output
• USB-C port for firmware updates
• Current consumption: 120 mA (+12 V) / 10 mA (-12 V)
• Width: 18 HP
