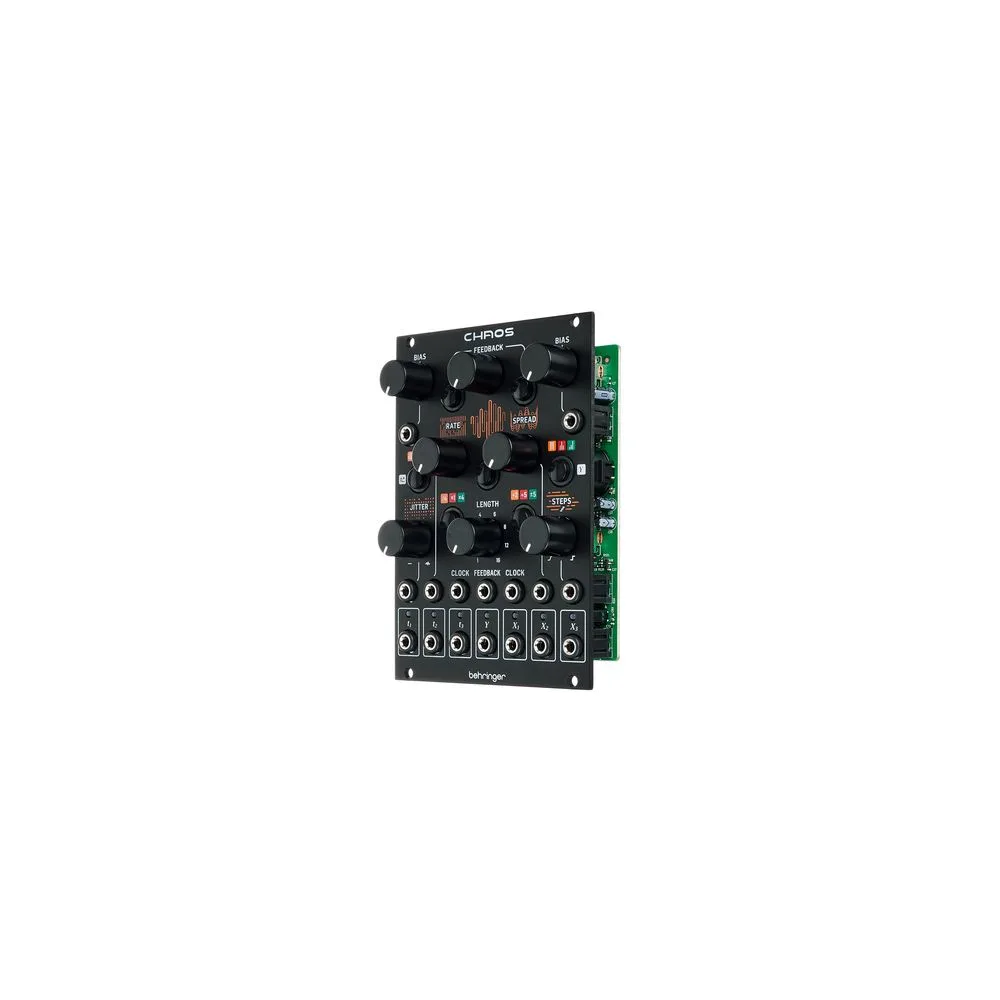

Chaos

Eurorack Module

• Random Sampler
• t-section with 3 gate/trigger outputs, driven by internal or external clock
• 2 Gate / trigger outputs with selectable random algorithm (random coin toss, random ratcheting, random beats) and adjustable jitter
• X-section with 3 channels of random voltages, driven by the outputs of the t-section or external clock
• Random voltages can be smooth, stepped or quantised
• Memory locations for 6 scales
• Spread control, Bias control and 3 selectable modes influence the generated random voltages
• Y-Output for an independent fluctuating random voltage
• Feedback section: looper for past events with the possibility to add new random events to the data loop
• Sampling of external CV signals with the Feedback section
• CV inputs for all parameters
• Power consumption: +100mA (+12V) / -60mA (-12V)
• Width: 18 HP
• Depth: 41 mm
