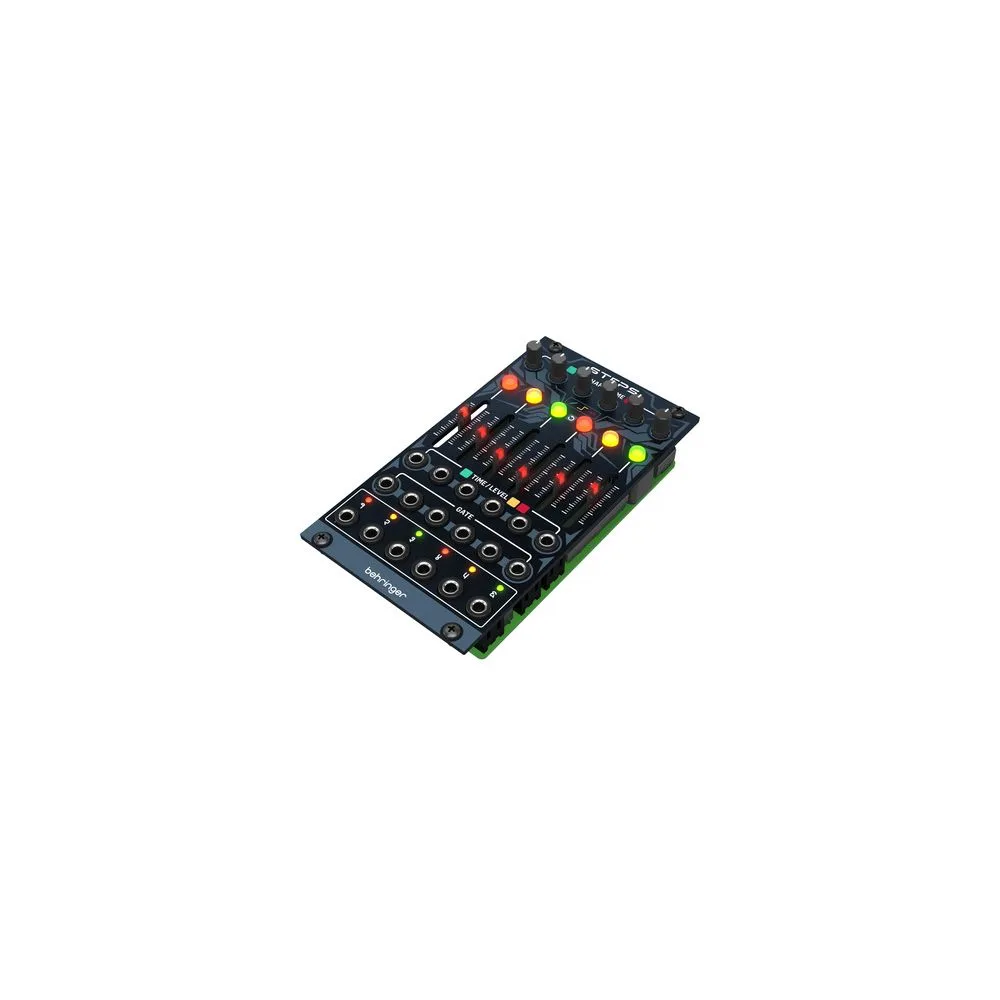

Steps

Eurorack Module

• Segment generator, ASR envelope, complex 6-stage envelope, LFO or 4-stage sequence
• The grouping of segments is configured using the gate inputs (cable disconnected or connected)
• Flexible segment grouping options: Complex 6-stage envelope, six individual envelopes or 3+3, 2+4, etc.
• Gate output for each stage when used as a multi-segment envelope
• Three different segment types: Ramp, Hold, Step
• Looping of individual segments or segment groups
• Segment duration: 1 ms to 16 s
• Up to six modules can be linked via a connection on the rear of the module
• Width: 14 HP
• Power consumption: +100 mA (+12V) / -30 mA (-12V)
